WinLauncher:  Setup - Map Settings

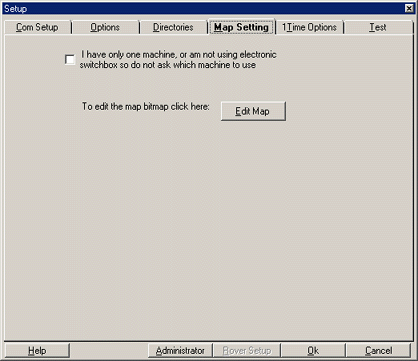

If your computer is connected to only one CNC, or you are using a manual switchbox rather than an electronic switchbox, WinLauncher does not need to ask you to identify the machine to which you are communicating.  If this is your case, click on the box provided on the top of the Map Settings screen.

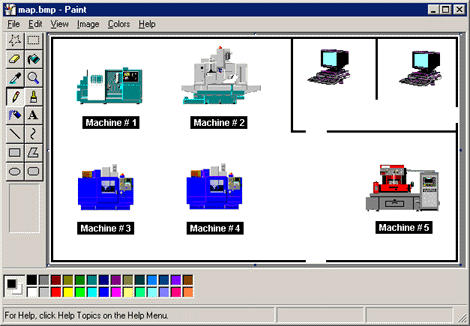

If you are using an electronic switchbox, WinLauncher will display a floor plan of your shop.  This is a bitmap file that can be modified with a Paint program by clicking on the Edit Map button.

Note:  If you have only one CNC machine or if you have a manual switchbox, click on the box provided on this screen.  This will prevent WinLauncher from asking you for the CNC machine number to which you want to communicate.
